Product Description:
Pulse Jet valve is a type of valve that converts a continuous input signal into a pulsed signal through the delay caused by gas flowing through gas resistance and gas capacity. The inner structure of the air inlet in the right angle pulse jet valve, along with the installation and use of the positioning steel ring, helps prevent loosening due to inertial impacts, ensuring precise installation. Even after prolonged use, the stainless steel nut still allows for easy disassembly and assembly.
Applications:
Bag filter pulse cleaning system
Function: Control the instantaneous injection of compressed air into the filter bag to remove surface dust.
Applicable equipment:
- Cement plant rotary kiln dust collector
- Steel plant blast furnace gas purification system
- Bag dust removal device for coal-fired power plants
- Dust collection system for chemical/pharmaceutical industry
- Material conveying and pneumatic conveying system
Used for pulse airflow dredging when pipelines are blocked (such as grain and fly ash conveying pipelines).

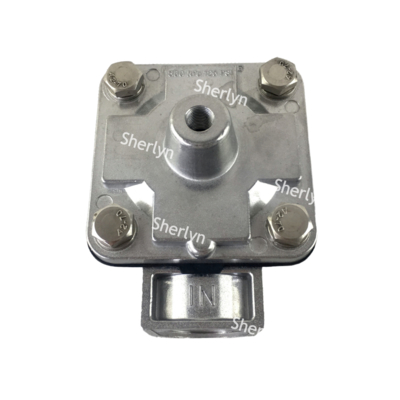

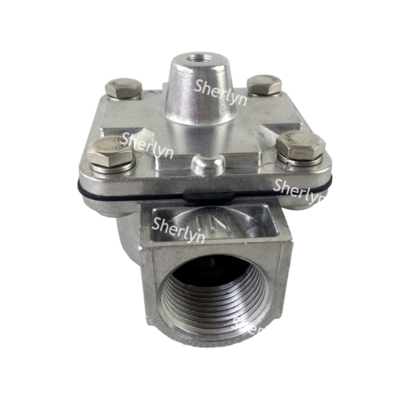

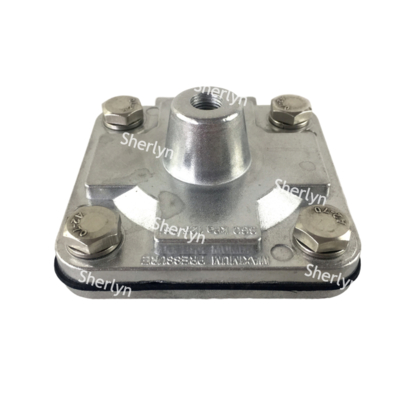

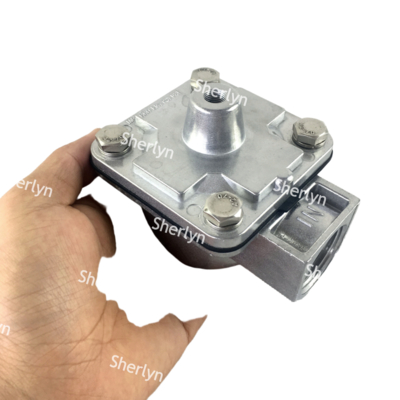

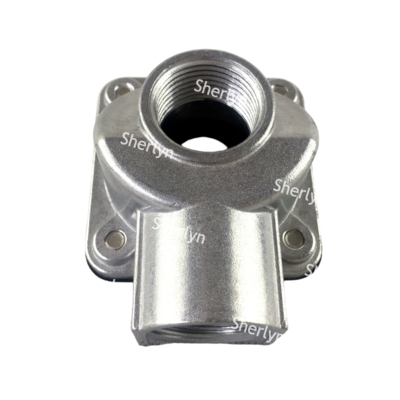

1'' RCA25T Goyen Type Remote Pilot Pulse Valve For Dust Collector
Pulse jet valves are indirect operated solenoid valves especially designed for dust collector systems. When the solenoid is energized, trapped air above a diaphragm is quickly exhausted causing a high pressure difference across the diaphragm. Thereby the diaphragm is suddenly opened. When the solenoid is de-energized, air escapes through a hole to the chamber above the diaphragm which balances the pressure and instantly closes the valve. The fast opening and closing of the valve is of great importance for effective cleaning of filters and economical consumption of compressed air. This is made possible by keeping the weight of the moving parts small and therefore having a small inertia. These valves have very high kV values.
Technical Data of T Series Pulse Jet Valves:
| Model Number |
RCA15T |
RCA20T |
RCA25T |
RCA35T |
RC45T |
RCA50T |
RCA62T |
RCA76T |
| Office Size |
15 |
20 |
25 |
35 |
45 |
50 |
62 |
76 |
| (mm) |
| Port Size |
1/2'' |
3/4'' |
1'' |
1 1/2'' |
1 1/2'' |
2'' |
2 1/2'' |
3'' |
| (Inch) |
| Diaphragm Number |
1 |
2 |
| Pilot Size |
1/8'', 1/4'' |
| Working pressure |
0.35 to 0.85 MPa |
| Diaphragm Material |
NBR, VITON |
| Body Material |
Aluminum Alloy |
| Valve Structure |
Right Angle (Outlet is at 90° to Inlet), Threaded Port |
Support and Services:
Our Product Technical Support and Services for Pulse Jet Valves include:
- Expert troubleshooting assistance for any operational issues
- Installation guidance and support
- Maintenance recommendations to ensure optimal performance
- Training programs for users and maintenance staff
- Product documentation and manuals for reference
- Warranty information and claims processing
Contact us for any technical support or service inquiries regarding our Pulse Jet Valves.
Packing and Shipping:
Product Packaging and Shipping:
Our Pulse Jet Valves are packaged securely to ensure safe delivery to our customers. Each valve is carefully wrapped and placed in a sturdy box with ample padding to prevent any damages during transit.
For shipping, we partner with reliable courier services to deliver your order promptly. You can track your package and expect timely delivery to your doorstep.
