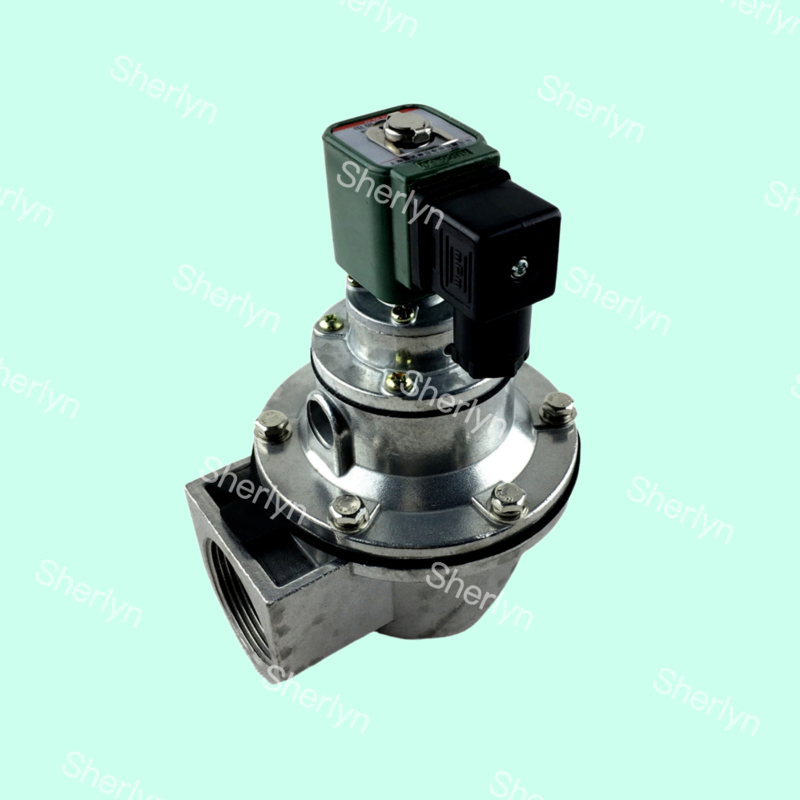

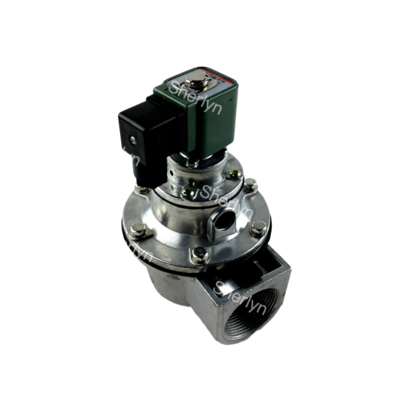

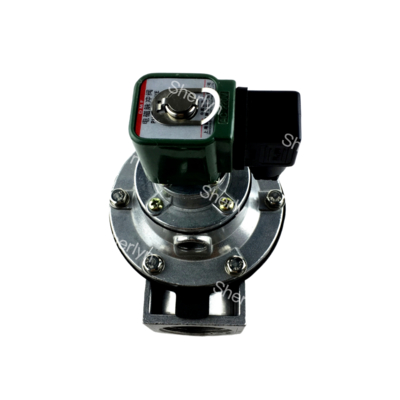

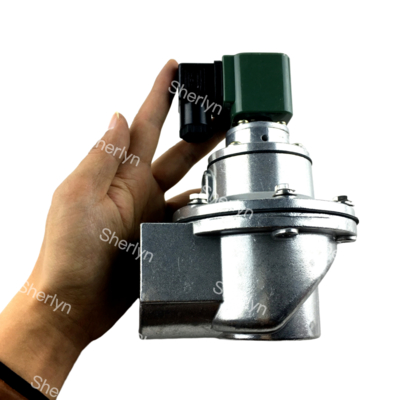

BFEC DMF-Z-40S Stainless Steel 1.5'' Right Angle Baghouse Pulse Jet Valve 24VDC 220VAC

BFEC DMF-Z-40S 1.5'' Right Angle Baghouse Pulse Jet Valve 24VDC 220VAC

Product Description:

The DMF series is categorized into three types based on installation structure to suit various working conditions:

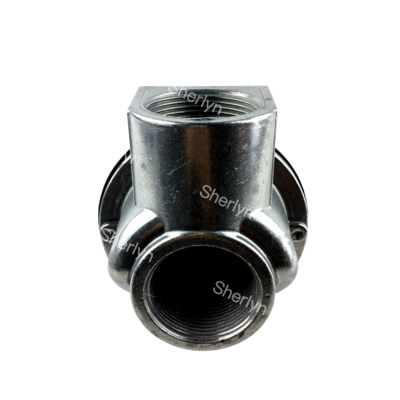

Right angle (DMF-Z):
The inlet and outlet angles are set at 90 degrees, featuring a compact structure that saves space by 5 units. A notable model within this category is the DMF-Z-25/40S, designed for demanding dusty environments found in steel and cement plants. Its advantage lies in the direct connection of the airbag and spray pipe, making installation a breeze.

Direct type (DMF-T):
With an inlet and outlet angle of 180 degrees, this variant offers low airflow resistance, making it ideal for use in small to medium-sized dust removal systems. An example model is the DMF-T-20 (diameter 20mm), commonly utilized in wood processing and food industries. Its key parameters include a working pressure range of 0.4 to 0.7MPa and an impressive diaphragm lifespan of over one million cycles.

Submerged (DMF-Y):
Considered the mainstream choice, the valve body of submerged DMF-Y units is embedded in the airbag installation, achieving high circulation efficiency, especially in scenarios with low-pressure gas sources. Notable models include:

• DMF-Y-80 (three and a half inches): Offers a large spray coverage area, enhancing dust removal efficiency.
• DMF-Y-102SA: With a 3-inch valve body, it achieves a 4-inch injection effect, resulting in a 45% increase in injection volume compared to traditional 3-inch valves.
• DMF-Y-76S/90S: Featuring a large diameter design (76mm to 102mm), it is suitable for extensive systems like cement kiln tails and waste incineration facilities.

Applications:

Iron and Steel Metallurgy: Used for high-temperature and high dust environments such as sintering heads and blast furnace gas purification, requiring the use of a cooler (temperature ≤ 60 ℃). It is recommended to use a DMF-Z right angle valve or submerged valve.

Cement Manufacturing: Kiln tail dust collector, raw material grinding dust removal, compatible with DMF-Y submerged valve (such as DMF-Y-80), resistant to ambient temperature dust (<80 ℃).

Garbage Incineration: Fluorine rubber (FKM) membrane submerged valves (such as DMF-Y-62S) are required for acid flue gas treatment, which can increase corrosion resistance by 8 times.

Wood Processing/Food Chemical Industry: Sawdust or powder pneumatic conveying scenarios, suitable for straight-through valves (DMF-T series), requiring oil-free dry air (oil content<5ppm).

Bunker Arch Breaking: The material bridge in the coal powder silo and grain silo is broken by pulse airflow, with a frequency of ≤ 30 times/minute.

Pneumatic Conveying Blockage Removal: Install pulse valves at pipeline blockage points to instantly spray and clear powder materials (such as plastic particles and food-grade calcium carbonate).

List of All DMF Series BFEC Pulse Jet Valves:

Support and Services:

Our Product Technical Support and Services for Pulse Jet Valves include:

- Comprehensive troubleshooting assistance for any technical issues

- Product installation guidance and support

- Maintenance tips and recommendations to ensure optimal performance

- Product training sessions for your team to enhance understanding and operation

- Warranty assistance and support for any product-related concerns
