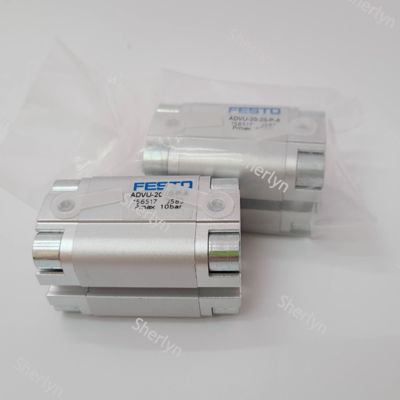

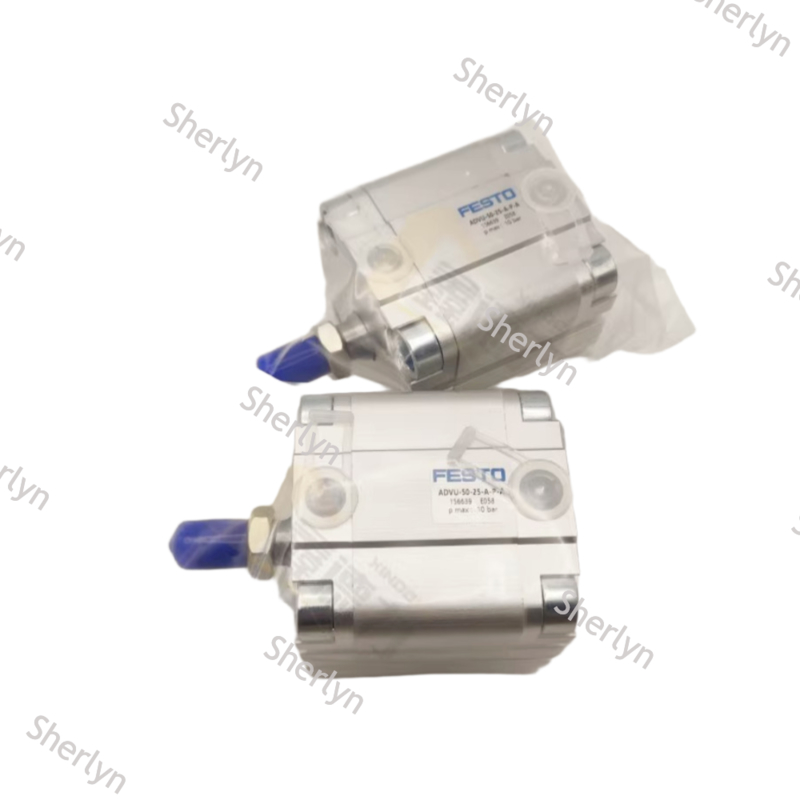

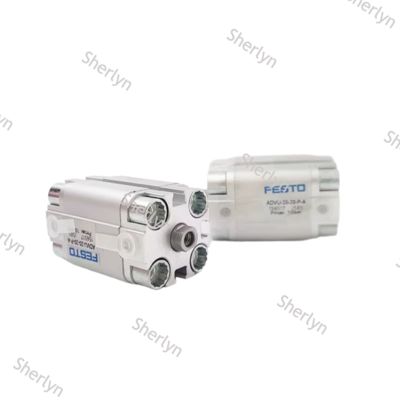

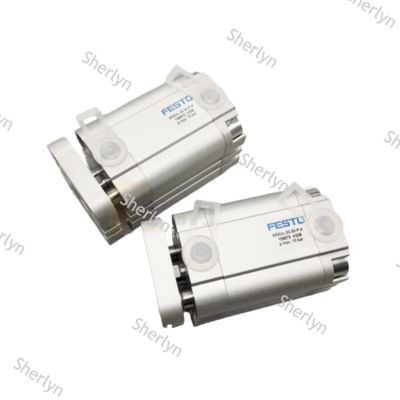

FESTO Cylinder ADVU Series ADVU-12-5-P-A

Product Description:

The ADVU series is a compact short stroke cylinder launched by Festo, covering various working forms such as double acting (ADVU) and single acting (AEVU, AEVUZ).

Double acting cylinder (ADVU): controls the extension and retraction of the piston rod through compressed air. The piston diameter range is from 12 mm to 125 mm, with a wide stroke range. The standard stroke is 5 to 80 mm, and some models can choose a stroke range of 1 to 400 mm.

Single acting cylinder: including push type (AEVU) and pull type (AEVUZ). The piston diameter is 12 to 100 mm, and the stroke is usually 5 to 25 mm or 1 to 25 mm.

Compact structure and standardization: The ADVU series cylinders have a simple appearance, smooth surface, and compact structure. Some models comply with international standards such as ISO 6432 (such as ADVU-32-10-P-A) or VDMA, and have good interchangeability and compatibility.

Buffer and sensing functions:

Buffer design: The cylinder is usually equipped with elastic buffer rings or pads (often labeled as "P" in the model) at both ends, which can effectively absorb the energy of motion impact, reduce vibration and noise, and extend the service life.

Position sensing: Many models support non-contact position sensing (often labeled as "A" in the model), which facilitates the installation of proximity sensors (such as inductive sensors SM... -8) to achieve precise detection and control of piston position.

Applications:

The Festo ADVU series cylinders are widely used in various fields due to their compact structure, reliable performance, and flexible configurability:

• General automation equipment: extensively used in automation control systems and pneumatic equipment.
• Automotive manufacturing and assembly: for clamping and positioning in welding, handling, pressing, and other processes.

Example: ADVU-32-10-P-A model for positioning.

• Electronics and semiconductor industry: for chip grinding, spot welding machines, circuit board assembly, etc., where high cleanliness and precision are required.

Example: ADVU-32-40-P-A model for spot welding machines.

• Food and beverage packaging machinery: for pushing, measuring, and packaging actions in filling lines, packing machines, labeling machines.

Example: ADVU-32-10-P-A model for labeling.

• Medical and laboratory equipment: suitable for precise control needs in medical equipment and biotechnology industry.

Example: ADVU-20-15-P-A model for medical and health field application.

• Other industrial fields: applied in areas like metal processing, printing equipment, material handling, etc.
