Product Description:
The SMC KQG2H Series offers a range of stainless steel 316 (SUS316) one-touch fittings that cater to applications requiring high resistance to corrosion, chemicals, and temperature. These fittings are designed with a push-to-connect mechanism, featuring metal components crafted from SUS316 stainless steel and seal parts made from special FKM material.
They are grease-free and suitable for steam applications, providing enhanced performance in demanding environments. The KQG2H Series has been improved over the previous KQG series, with a 30% reduction in volume and a 62% decrease in weight. They are available in both metric and inch sizes, offering versatility for various installation requirements.
Features:
Premium Material: Metal parts are made of SUS316 stainless steel, offering superior corrosion and pitting resistance compared to 304 stainless steel, particularly in chloride-rich environments.
Compact & Lightweight: This series is 30% smaller in volume and 62% lighter than the traditional KQG series, making it perfect for applications where space is limited.
High Temperature Resistance: It can handle fluid temperatures ranging from -5°C to +150°C.
Wide Compatibility: Compatible with various tubing materials such as FEP, PFA, nylon, soft nylon, polyurethane, and polyolefin.
Multi-Fluid Application: Suitable for use with air, water, steam, and other types of fluids.
Safe & Reliable: With an operating pressure range from -100kPa to 1MPa and a proof pressure of 3.0MPa.
Technical Parameters:
| Applicable tubing material |
FEP, PFA, Nylon, Soft Nylon |
| Metal parts |
Stainless Steel 316 |
| Seal parts |
Special FKM |
| Fluid temperature |
-5 to 150˚C |
| Proof pressure |
3.0 MPa |
| Fluid |
Air, Water, Steam |
| KQG2H04-00 |
KQG2H04-06 |
KQG2H04-01S |
KQG2H08-01S |
KQG2H12-03S |
KQG2H04-01 |
KQG2H08-02 |
KQG2H12-02 |
| KQG2H06-00 |
KQG2H06-08 |
KQG2H04-02S |
KQG2H08-02S |
KQG2H12-04S |
KQG2H04-02 |
KQG2H08-03 |
KQG2H12-03 |
| KQG2H08-00 |
KQG2H08-10 |
KQG2H06-M5 |
KQG2H08-03S |
KQG2H16-03S |
KQG2H06-01 |
KQG2H10-01 |
KQG2H12-04 |
| KQG2H10-00 |
KQG2H10-12 |
KQG2H06-01S |
KQG2H10-01S |
KQG2H16-04S |
KQG2H06-02 |
KQG2H10-02 |
KQG2H16-03 |
| KQG2H12-00 |
KQG2H12-16 |
KQG2H06-02S |
KQG2H10-02S |
KQG2H10-04S |
KQG2H06-03 |
KQG2H10-03 |
KQG2H16-04 |
| KQG2H16-00 |
KQG2H04-M5 |
KQG2H06-03S |
KQG2H10-03S |
KQG2H12-02S |
KQG2H08-01 |
KQG2H10-04 |
|
Applications:
Food & Pharmaceutical Industry: Complies with Japanese Food Hygiene Law requirements, suitable for food and pharmaceutical equipment.
Semiconductor & Electronics Industry: Ideal for gas and liquid transfer in high-purity environments.
Chemical Processing: Corrosion-resistant characteristics suitable for chemical transfer systems.
High-Temperature Steam Environments: Applicable for equipment requiring steam cleaning or sterilization.
Support and Services:
The Product Technical Support and Services for Pneumatic Pipe Fittings include:
- Assistance with product selection and specifications
- Installation guidance and troubleshooting
- Maintenance recommendations and best practices
- Warranty support and claims processing
- Training sessions for users and maintenance personnel
Packing and Shipping:

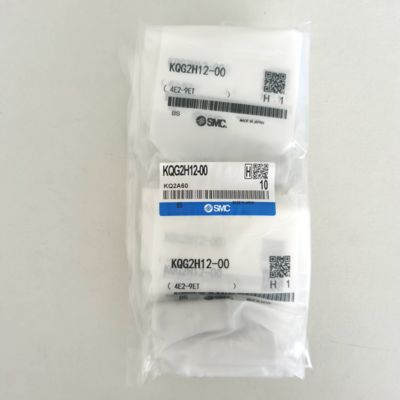

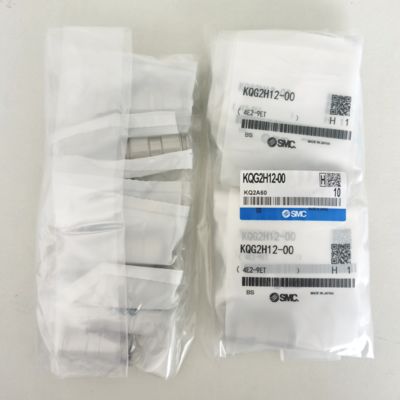

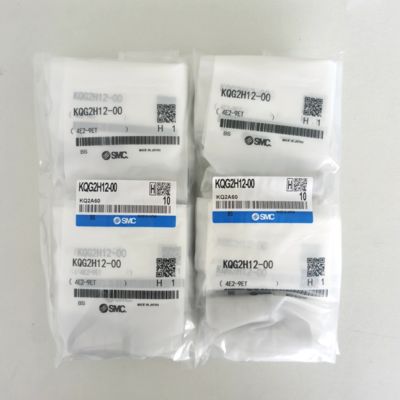

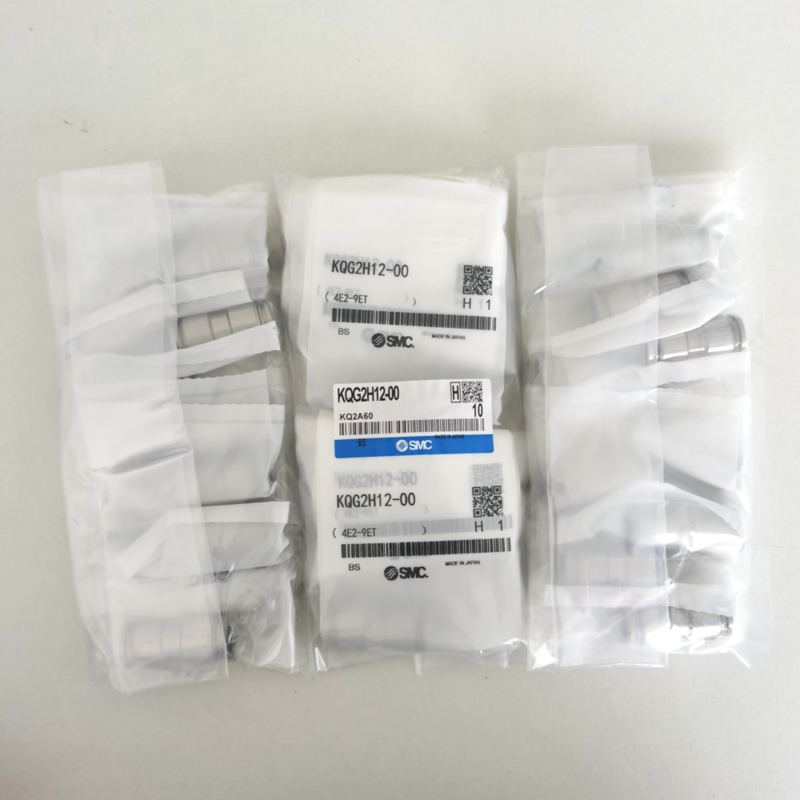

Product Packaging:
Our pneumatic pipe fittings are carefully packaged in sturdy cardboard boxes to ensure they arrive at your doorstep in perfect condition. Each fitting is individually wrapped and labeled for easy identification.
Shipping Information:
We offer fast and reliable shipping options for our pneumatic pipe fittings. Orders are typically processed within 1-2 business days and shipped via trusted carriers to ensure timely delivery. You will receive a tracking number to monitor the status of your shipment.
