ASCO Solenoid Valve Series G531B017 EFG531B017MS ASCO531Series 1/4 Explosion proof 3/2-way

Product Description:

The ASCO 551, 553, and 531 series represent a group of compact spool-type solenoid valves, each distinguished by specific parameters such as port size and flow capacity, targeting different application scenarios. These valves are widely utilized for gas regulation across industries like chemical processing and the food and beverage sector. Below is a comprehensive overview highlighting the characteristics of each series:

1. 551 Series

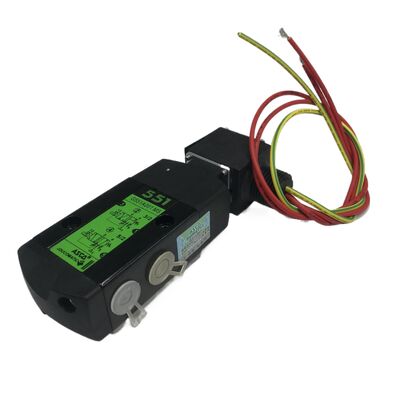

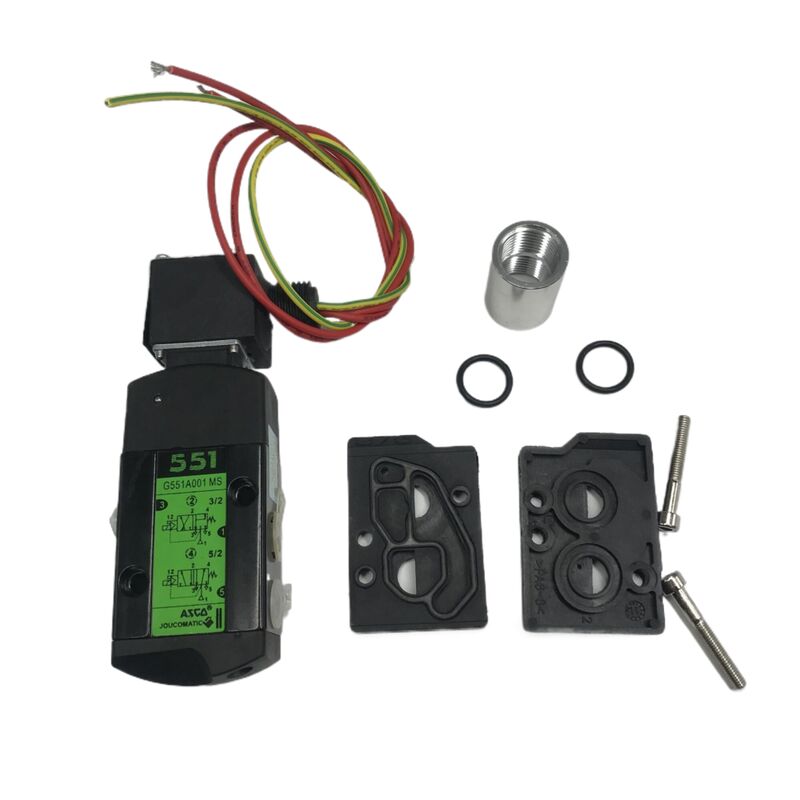

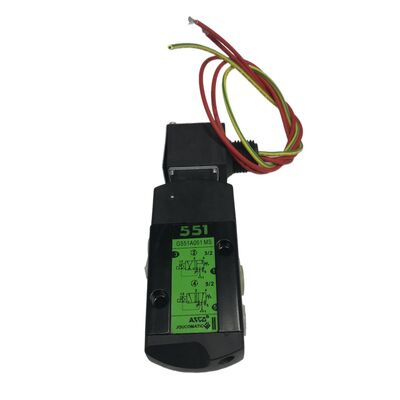

Also identified as the 8551 Series, this model is a 1/4-inch 3-way and 4-way compact solenoid spool valve. It is engineered specifically for controlling air and inert gases in demanding and corrosive environments, making it suitable for various hazardous applications.

• Key Parameters: The operating pressure ranges from vacuum conditions up to 150 psi, with a medium temperature tolerance between -60℃ and 80℃. Flow rates vary from 0.5 to 1.0 Cv (0.43 to 0.86 Kv). It supports multiple voltage configurations including DC options (6VDC, 12VDC, 24VDC, etc.) and AC options (24VAC, 110VAC, 220VAC, etc.), adapting effectively to diverse power supplies.
• Structure & Materials: The valve body can be made from anodized aluminum, brass, or stainless steel (optional). Port types include G ISO228/1 - G BSPP and NPTF, with connection through 1/4-inch NPT and BSP threads. It supports various function modes such as 3/2 NC (Normally Closed), 4/2, 4/3 CC (Center Closed), and 4/3 NO (Normally Open). Both single-coil and double-coil configurations are available, with installation possible in any orientation.
• Core Advantages & Applications: Featuring a hybrid design of rigid T-seals combined with flexible O-rings, it offers robust sealing abilities and excellent resistance to contamination, ensuring stable performance over millions of cycles. The valve carries multiple explosion-proof certifications including ATEX, UL, and CSA. It is well-suited for chemical engineering, oil refining, food and beverage processing, and life science industries.

2. 553 Series

Known also as the 8553 Series, this valve comes with a larger 1/2-inch port size and increased flow capacity compared to the 551 Series. It remains focused on managing air and inert gases efficiently.

• Key Parameters: It operates within a vacuum to 150 psi range. The flow capacity ranges from 2.0 to 6.0 Cv (1.73 to 5.19 Kv), offering superior flow performance. Voltage options align with those provided in the 551 Series, ensuring compatibility with various power sources. It is rated IP65 for protection and supports functional safety loops under SIL3, guaranteeing high safety standards.
• Structure & Materials: Constructed with valve bodies made of aluminum, brass, or 316L stainless steel. Port types follow G ISO228/1 - G BSPP and NPTF standards, while connections use 1/2-inch NPT and BSP threads. The valve supports two installation methods: actuator mounting with NAMUR interfaces per the VDI/VDE3845 standard or direct mounting to piping through threaded connections.
• Core Advantages & Applications: The exhaust port is pipeable, and NAMUR ports are conveniently placed on the same side, ensuring excellent dust and water resistance. It boasts waterproof and explosion-proof features and incorporates a low-power design suitable for remote power applications. Its rugged design makes it ideal for challenging industrial environments requiring high flow, such as chemical processing and oil refining.

3. 531 Series

The 531 Series is tailored to prioritize safety and reliability, offering options for both explosion-proof and non-explosion-proof configurations. It is primarily applied for actuator pilot control within chemical and hybrid industrial settings, with flagship models such as the SCG531C001MS.

• Key Parameters: This series operates from -0.95 bar to +10 bar and tolerates an ambient temperature range from -10℃ to +60℃. At 6 bar pressure, the flow rate reaches 1150 L/min (ANR). It features a G1/4 interface size, a 6mm port diameter, and a flow coefficient of 0.95 m³/h. Typical voltage options include 220VAC and 24VDC, with coil specifications exhibiting an inrush power of 6 VA and holding power of 3.5 VA.
• Structure & Materials: The valve body is made of black anodized aluminum, sealed with low-friction, non-sticking T-seals. The top cover and end caps consist of polyamide, while internal components combine acetal and aluminum. Electrical connections can be DIN or metal M12 types. Installation follows the NAMUR standard and the exhaust port is threaded to minimize impurity ingress.
• Core Advantages & Applications: Incorporating an internal air circulation design, it effectively prevents moisture penetration into the actuator and valve body to avoid corrosion. The valve complies with EN60730 safety standards and carries explosion-proof certifications such as ATEX and IECEx. Due to its exceptional cleanliness and stability, it is especially suitable for industries demanding high environmental purity, including pharmaceuticals and food production, as well as actuator pilot control within the chemical sector.

Technical Parameters:

This ASCO electron magnetic valve is a reliable electron magnetic valve designed with a plate type connection method. As an electron magnetic valve from the 551 series, it supports a nominal pressure of 400 Bar and operates within a temperature range of -60°C to 80°C, making it suitable for various industrial applications.

Applications:

The ASCO Solenoid Valve, a high-quality electron magnetic valve, is widely utilized across various industries due to its reliable performance and robust design. Manufactured under the renowned ASCO brand and certified with CE standards, this 2-way Solenoid Spool Valve offers exceptional control over fluid and gas flow in complex systems. It is especially suitable for applications requiring precise on/off control, making it an ideal choice for automation processes, HVAC systems, and industrial machinery.

Thanks to its plate type connection method, the ASCO Solenoid Valve ensures easy installation and compatibility with diverse piping systems. The valve operates efficiently within a temperature range of -60°C to 80°C, enabling it to function optimally in both extremely cold and moderately hot environments. This makes it a perfect solution for refrigeration units, chemical processing plants, and outdoor equipment exposed to varying climatic conditions.

In manufacturing and production lines, the ASCO electron magnetic valve plays a crucial role in controlling pneumatic and hydraulic circuits, enhancing operational efficiency and safety. Its quick response time and durability support continuous operation in demanding scenarios such as packaging machinery, automotive assembly lines, and food and beverage processing.

The valve’s compact design and reliable sealing capabilities are also favored in medical devices and laboratory equipment where precise fluid control is essential. Moreover, the supply ability of 5000 PCs per month ensures that clients can meet their production demands without delay. With a minimum order quantity of just one unit and flexible pricing through negotiation, the ASCO Solenoid Valve is accessible for both small-scale projects and large industrial deployments.

Packaging is handled thoughtfully, with options including cartons or customized packaging as per client requirements, ensuring the product arrives safely and intact. Delivery is prompt, occurring within 1-7 work days after payment, with multiple payment options available such as T/T, Western Union, and Paypal, facilitating a hassle-free purchasing experience.

Overall, the ASCO Solenoid Spool Valve is a versatile and dependable electron magnetic valve suitable for a wide range of application occasions and scenarios, from industrial automation and HVAC systems to medical devices and chemical processing. Its performance, certification, and flexible supply terms make it a preferred choice for engineers and procurement specialists worldwide.

Packing and Shipping:

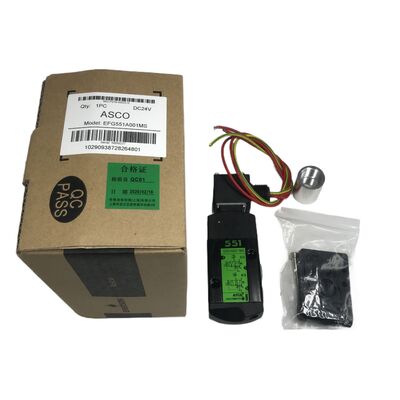

The ASCO Solenoid Valve is carefully packaged to ensure safe delivery and optimal protection during shipping. Each valve is securely placed in a custom-fitted box with protective padding to prevent any damage from impact or vibration.

All packaging materials are selected to maintain product integrity and resist moisture, dust, and other environmental factors. The outer carton is clearly labeled with product details, handling instructions, and shipping information to facilitate smooth logistics.

For international and bulk shipments, valves are palletized and shrink-wrapped to provide additional stability and protection. Shipping options are available to meet customer requirements, ensuring timely and reliable delivery worldwide.

Upon receipt, customers are advised to inspect the packaging for any signs of damage and report any issues immediately to ASCO customer service for prompt resolution.
